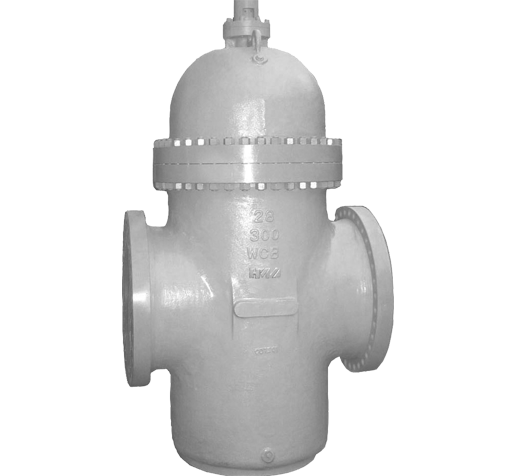

The plate gate valve is a sliding valve with parallel gate for closing parts. The closing element may be a single gate or a double gate with a supporting mechanism in between. The gate pressure to the seat is controlled by the medium pressure acting on the floating gate or floating seat. If it is a double gate plate gate valve, the supporting mechanism between the two gates can supplement this pressure. Size: 2"～48"
Rating: 150LB～2500LB
Body Materials: Carbon Steel, Stainless Steel,
Alloy Steel, etc
Design STD: API 6D
Trim: Soft Seated or Metal Seated
End Connection: RF, RTJ, BW
Operation: Handwheel, Gear, Motor, Pneumatic,
Gas Over Oil, Hydraulic
Low Emission Testing
Double Block & Bleed
Fire Safe Design
