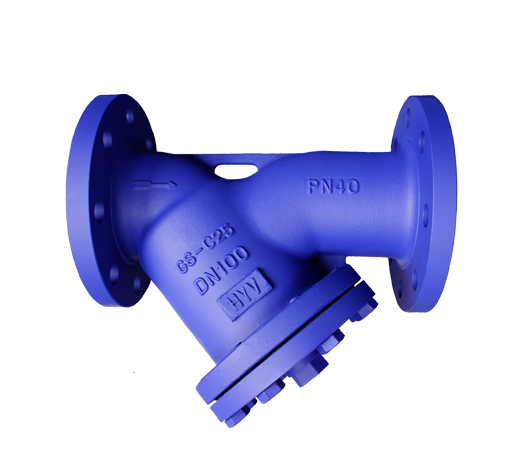

Y type filter is an indispensable filter device in the pipeline system of conveying medium, Y type filter is usually installed in the pressure reducing valve, pressure relief valve, water level valve or other equipment inlet end, used to remove impurities in the medium, in order to protect the normal use of the valve and equipment. Y - type filter has the advantages of advanced structure, low resistance and convenient blowdown. The suitable medium of Y filter can be water, oil and gas. The water network is 18~30 mesh, the aeration network is 10~100 mesh, and the oil network is 100~480 mesh. Basket filter is mainly composed of pipe, supervisor, filter blue, flange, flange cover and fastener. When the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid is discharged through the filter blue through the filter outlet. Size: 2"～24"
Rating: 150LB～1500LB
Materials: Carbon Steel, Low Temp, Carbon Steel,
Cr-Mo Steel, Stainless Steel, Duplex
Steel, Inconel, Monel , etc
